High Speed Blown Film Machine (with Single Rewinder)
High Speed Blown Film Machine with Single Rewinder
with Taiwan design extrusion screw and barrel
Video
Inquiry
This Taiwan design high speed blown film machine (with single rewinder) boasts a bimetal barrel and screw, which have been heat-treated for 7 days, making them highly durable and able to run for extended periods of time. Additionally, its screw designed by Taiwan engineers and its feeding and mixing parts are specially designed to boost the film quality and output. With a fixed die head and single rewinder, it is suitable for producing HDPE, Fillter, LDPE and biodegradable plastic film.
This high speed blown film machine provides a large quantity of output and a consistently high quality over a long period of time.
Technical Parameters
Model
SJ-50/HMB600
SJ-55/HMB800
SJ-60/HMB1000
SJ-65/HMB1200
Screw diameter (mm)
Ø50
Ø55
Ø60
Ø65
Screw L/D ratio
30:1
30:1
30:1
30:1
Film width (mm)
200-600
300-800
400-1000
600-1200
Film thickness (mm)
0.006-0.10
0.006-0.10
0.006-0.10
0.006-0.10
Max. capacity (kg/h)
70
80
100
115
Die size (mm)
Ø60/100
Ø80/150
Ø100/200
Ø120/250
Power of blower (kW)
3
3
3.7
4
Power of cooling cylinder (kW)
0.13*2
0.13X2
0.13X3
0.13X3
Power of driving motor (kW)
15
18.5
22
30
Total power (kW)
28
36
40
45
Cover Dimensions (m)
5.0*2.1*4.0
5.0*2.3*4.2
5.0*2.3*4.5
5.0*2.3*5
Weight (kg)
2500
2800
3000
3200
Main Extruder

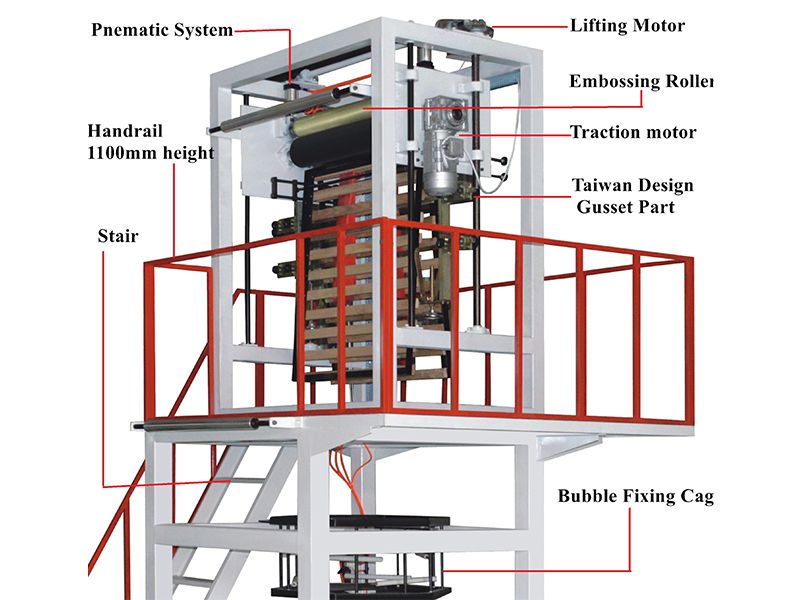

Traction Motor
Rewinder
Controller Box
Main Components
Screw (Taiwan Design)
Made of bimetal with tungsten carbide
1. Material: 38 CrMoALA
2. Material elemental analysis:
C: 0.35～0.42 Si: 0.20～0.45 Mn: 0.30～0.60 S: ≤0.035 P: ≤0.035
Cr:1.35～1.65 Al: 0.70～1.10 Ni: ≤0.030 Cu: ≤0.030 Mo:0.15～0.25
3. Hardness of tempering: HB260-290
4. Depth of nitriding treatment: 0.4-0.7 mm
5. Hardness of surface: HV900-1050
6. Roughness of surface: 0.32 Ra
7. Linearity of screw: 0.015 mm/m
8. Bimetal screw: designed with a layer of tungsten carbide applied to the thread.
9. Hardness of bimetal layer: HRC 58-62
10. Depth of bimetal layer: 2-3 mm
11. Bimetal layer elements: Fe, Ni, B, C, Cu, etc.
Main Motor (Siemens)
1. Speed: 1400 rpm
2. Motor power: 380V, 3-Phase, can be adjusted as needed.
3. Service life: more than 10 years.
Gearbox
1. Functions: reduces speed of transmission
2. Speed rate: 10:1
3. High strength hard gearbox boasting service life
4. Transferring requires lubrication oil.
5. Low noise and longer service life
Heater
1. Ceramic heater heats up faster than stainless-steel alternatives
2. Its lifespan is no less than 5 years
3. It can better retain heat, resulting in lower power consumption
4. Made from high-quality ceramic and heating wire.
Fixed Die Head (Taiwan Design)
1. Made from #45 steel, providing robust performance.
2. Surface treatment is employed to increase the transparency of films.
3. The size of die heads is larger than normal, resulting in increased efficiency and productivity.
Fast Screen Changer
1. Ensure that workers are employed efficiently
2. Minimize the risk of material leak
3. Easy to change the filters, saving time and human labor
Double Vent Air Ring
1.Using two lips instead of one can cool the film more quickly, thereby increasing the machine's output.
2.Suitable for HDPE and LDPE films.
Electric Parts (Omron temperature controller and LS inverter)
1. Digital technology provides precise temperature control at a three centigrade level
2. Service life of no less than 10 years
Traction Parts
Gusset part adopts Taiwan design, easy to adjust
Single Rewinder
1. Automatic tension control ensures that traction is kept at the same speed. This ensures that operations are kept running at an optimal speed.
2. LG's inverter technology allows for the regulation of motor speed, helping to minimize power consumption.
TPLAST is a plastic machinery company with years of experience in the production of plastic bag machines. As a specialist manufacturer of plastic bag making machines, we have a broad range of bag making machinery, such as flat bag making machine, bag on roll making machine and specialty bag making machine, to suit various plastic bag production needs. In addition, we also supply other plastic processing machines including plastic film machines, plastic printing machines and plastic recycling machines to meet your diverse production demands. With years of engagement in the plastic industry, we pride ourselves in our expertise and ability to design and manufacture plastic film and bag making machines.
