Multifunctional Side Seal Bag Making Machine

Computer controlled plastic bag making machine with hot cutting and heat sealing

Automatic 4 Lines Cold Cutting Bag Making Machine
Multifunctional Side Seal Bag Making Machine
  • Multifunctional Side Seal Bag Making Machine
  • Multifunctional Side Seal Bag Making Machine
  • Multifunctional Side Seal Bag Making Machine
  • Multifunctional Side Seal Bag Making Machine
Video
Inquiry

This multifunctional side seal bag making machine is suitable for hot cutting and heat sealing of a variety of bag types, including bakery bags, sack packaging bags, food bags, and more.

BOPP, OPP and PE plastic bags can all be created with or without prints by using this side seal bag making machine.

This plastic bag making machine features servo motor control, Delta inverter, and Omron temperature controller, enabling it to run for extended service life. Additionally, it is equipped with NSK bearings imported from Japan.

Technical Parameters
Model
RQL-600
RQL-800
RQL-1000
Max. width of bag 600 mm 800 mm 1000 mm
Max. length of bag 700 mm 700 mm 700 mm
Max. width of bag making 500 mm 700 mm 900 mm
Bag making speed 40-200 pcs/min 40-200 pcs/min 40-200 pcs/min
Total power 3.6 kW 3.8kW 4.7 kW
Weight 1000 kg 1100 kg 1200 kg
Dimensions 3500*1100*1800 mm 3500*1200*1800 mm 3500*1400*1800 mm
Application

This side seal bag making machine is versatile for making various plastic bags such as bakery bags, sack packaging bags, food bags, and more.

Details

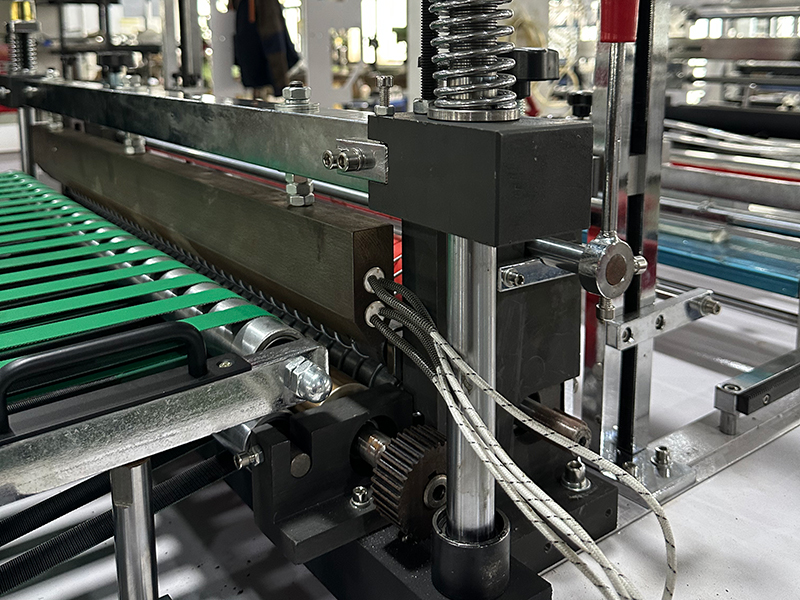

    1. Sealing Unit
      Sealing knife is made from hard steel that won't easily break
      A heating tube allows for quick heating from the insideautomatically
    2. Multifunctional Side Seal Bag Making Machine
    1. Unwinder Motor
      AC motor with gearbox, and with a power rating of 0.37kW
      It has a Delta inverter for controlling, which gives it an incredibly long service life of more than 10 years - outperforming DC motor controller
    2. Multifunctional Side Seal Bag Making Machine

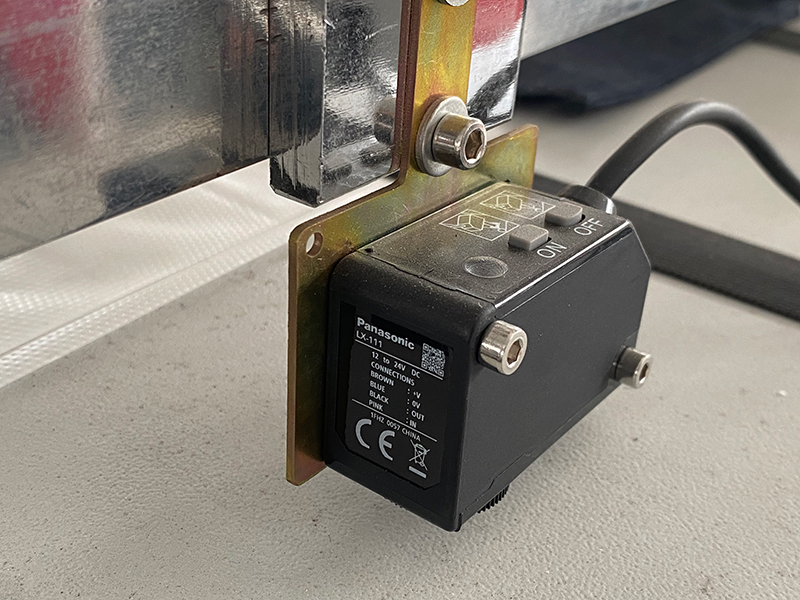

    1. Photocell
      Panasonic photocell from Japan
    2. Multifunctional Side Seal Bag Making Machine
    1. Electric Components
      Delta inverter is utilized for the main motor, unwinder, and conveyor, helping provide a stable and efficient output
      Omron temperature controller and Fortec relay provide efficient temperature control
    2. Multifunctional Side Seal Bag Making Machine
  • Unwinder Equipped with EPC and automatic tension control, able to adjust tension and edge position control (EPC) automatically
  • Gusseting Unit Plastic gusset plates allow for making bottom gussets
  • Punching Unit 6mm punching holes can be made, die-cutting puncher device is also an option
TPLAST is a plastic machinery company with years of experience in the production of plastic bag machines. As a specialist manufacturer of plastic bag making machines, we have a broad range of bag making machinery, such as flat bag making machine, bag on roll making machine and specialty bag making machine, to suit various plastic bag production needs. In addition, we also supply other plastic processing machines including plastic film machines, plastic printing machines and plastic recycling machines to meet your diverse production demands. With years of engagement in the plastic industry, we pride ourselves in our expertise and ability to design and manufacture plastic film and bag making machines.
