Computer Controlled Continuous Roll Vest Bag Making Machine

Computer Controlled Continuous Roll Vest Bag Making Machine
Computer Controlled Continuous Roll Vest Bag Making Machine
  • Computer Controlled Continuous Roll Vest Bag Making Machine
  • Computer Controlled Continuous Roll Vest Bag Making Machine
  • Computer Controlled Continuous Roll Vest Bag Making Machine
  • Computer Controlled Continuous Roll Vest Bag Making Machine
Video
Inquiry

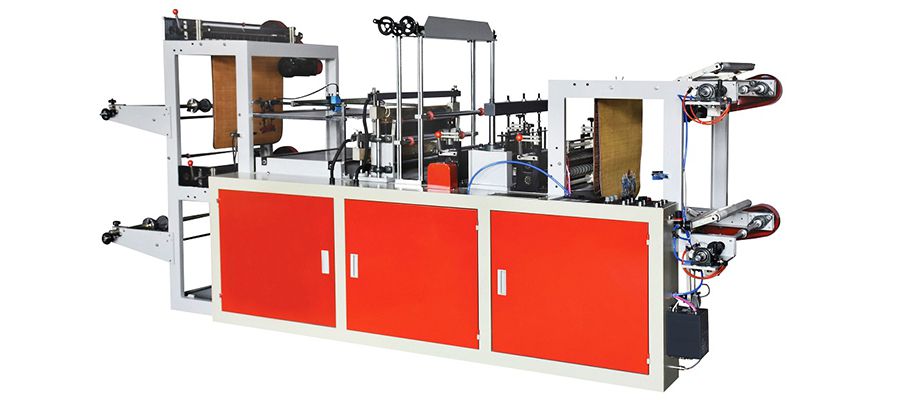

This versatile computer controlled continuous roll vest bag making machine is highly sought-after and perfect for producing both vest bag and flat bag rolls, with both paper core and non-core options. The bag making machine is computer-controlled and can manufacture printed and non-printed bags. It is designed with the ability to automatically adjust cutting length.

Its unwinder features an up-and-down movement design, allowing the employee to quickly and easily change rolls.

Technical Parameters
Model
DZB-600
DZB-700
DZB-800
Max. width of bags (mm) 500 600 700
Max. length of bags (mm) 1200 1200 1200
Thickness (mm) 0.008-0.15 0.008-0.15 0.008-0.10
Bag making speed (pcs/min) 40-200 40-120 40-120
Power of motor (kW) 1.5 1.5 1.5
Power of electric heater 1.2 1.6 2.2
Packing dimensions 3600*1200*1700 3600*1300*1700 3600*1500*1700
Weight (kg) 800 900 1000

This continuous roll vest bag making machine is versatile for making shopping bags and fruit bags.

Details
  • Unwinder Spring tension control
  • Sealing Unit Copper of superior quality is devised for the sealing knife, thereby enhancing its lifespan
  • Cutting Unit Flat bag cutting and vest bag cutting available
  • Rewinder Designed for use with both non-core rolls and paper cores
  • Machine Body Made from 10mm thick steel
TPLAST is a plastic machinery company with years of experience in the production of plastic bag machines. As a specialist manufacturer of plastic bag making machines, we have a broad range of bag making machinery, such as flat bag making machine, bag on roll making machine and specialty bag making machine, to suit various plastic bag production needs. In addition, we also supply other plastic processing machines including plastic film machines, plastic printing machines and plastic recycling machines to meet your diverse production demands. With years of engagement in the plastic industry, we pride ourselves in our expertise and ability to design and manufacture plastic film and bag making machines.
